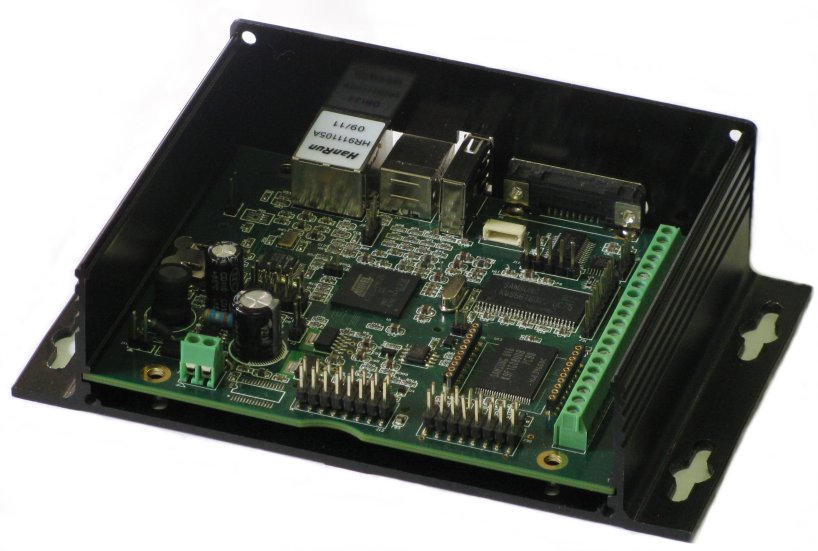

GESBC-9G20i Embedded Single Board Computer


High performance, low cost embedded single board computer with LAN, USB, A/D


Features


  • 400MHz Atmel AT91SAM9G20 ARM core processor with DSP Instruction Extensions
     and ARM JazelleŽ Technology for JavaŽ Acceleration
  • 32MB 133MHz high speed SDRAM , 128MB  NAND FLASH
  • 10/100 baseT Ethernet
  • SD/MMC with SDHC support
  • 2 USB Host port
  • 1 USB device port
  • 3 RS-232
  • 1 RS-485
  • Real-time clock and watch-dog timer
  • A/D
  • Digital I/O
  • ZigBee interface
  • 4x20 Character LCD display port
  • WiFi ready
  • -30°C ~ +70° C fanless operation


Specification


System

  • 400MHz Atmel AT91SAM9G20 ARM core processor
  • 32MB 133MHz high speed SDRAM
  • 128MB NAND FLASH
  • DSP Instruction Extensions
  • ARM JazelleŽ Technology for JavaŽ Acceleration
  • SD/MMC with SDHC support

Multi-IO

  • 2 USB host ports
  • 1 USB device port
  • 3 RS-232 port
  • 1 RS-485 port
  • I2C bus
  • 8 open collector digital output channels with 200mA current drive
  • 6 input channels with up to 20V protection

Network

  • 10/100 baseT Ethernet
  Timer & Clock

  • On chip real time clock with battery backup
  • On chip watch-dog timer

Analog I/O

  • Integrated 4 channel 10 bit A/D converter
  • optional 8 channel 12 bit A/D converter

Power Requirement

  • 7.5V ~ 24V DC or 5V DC@0.3A

Mechanical

  • 4.5"L  x 3.5"W

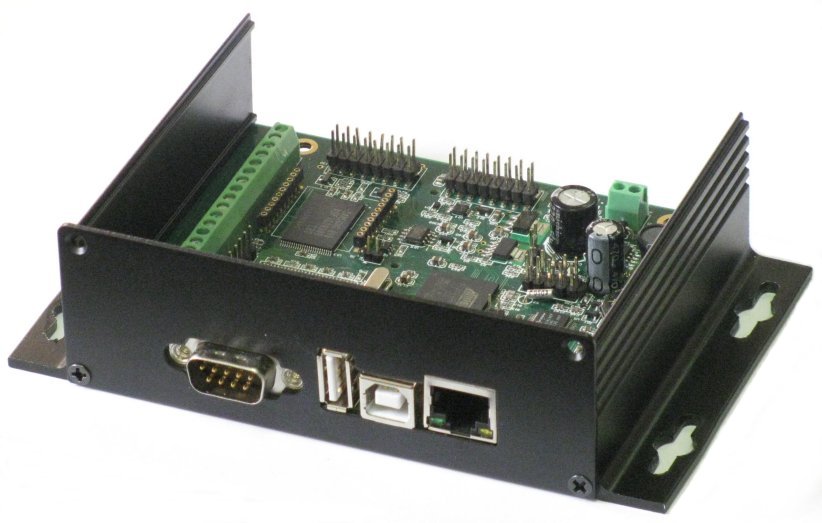

  • Optional aluminum enclosure
  • Operating temperature: Fanless -30°C ~ +70° C

Software support

  • U-boot 1.3.4
  • Linux 2.6.30
  • Available Debian ARM Linux based distribution with GCC 4.2, Perl, MySQL, and many other utilities for rapid native application development
  • Linux cross development tool chain
