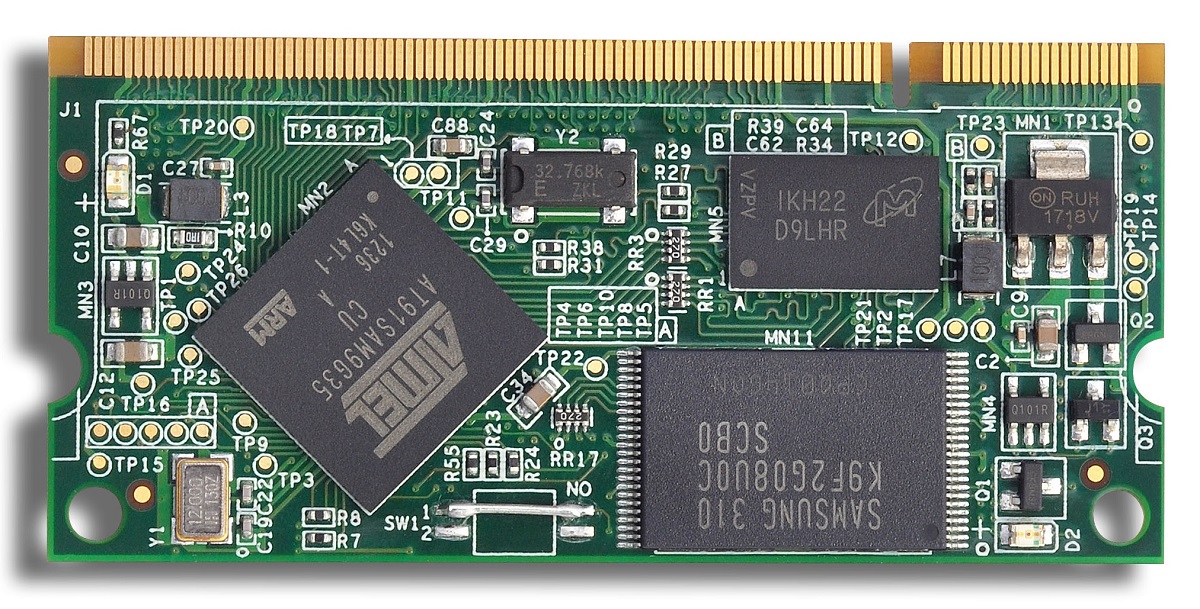

GECM-9G25/35 Embedded CPU Module

High performance, low cost embedded CPU module with LAN, USB, LCD controller, A/D

Features

  • 400MHz Atmel AT91SAM9G25 ARM core processor with DSP Instruction Extensions and ARM Jazelle® Technology for Java® Acceleration
  • 128 MByte high speed DDR2RAM
  • 256MB - 1GB NAND FLASH
  • 10/100 Ethernet MAC
  • Advanced graphics LCD controller with 4-layer overlay and 2D acceleration (9G35)
  • SD/MMC with SDHC support
  • 2 USB High Speed Host port
  • 1 USB device port
  • 6 UART
  • Real-time clock and watch-dog timer
  • A/D
  • Digital I/O

Specification

System

  • 400MHz Atmel AT91SAM9G25/35 ARM core processor
  • 128 MB high speed DDR2RAM, optional 512MB DDR2RAM
  • 256MB NAND FLASH, optional 512MB, 1GB NAND FLASH
  • advanced graphics LCD controller with 4-layer overlay and 2D acceleration (9G35)
  • SD/MMC with SDHC support

Multi-IO

  • 2 USB high speed host ports
  • 1 USB device port
  • 6 UART
  • I2C bus
  • SPI bus

Network

  • 10/100 Ethernet MAC

Timer & Clock

  • On chip real time clock with battery backup
  • On chip watch-dog timer
  • On chip 3 16 bit timer with PWM capability, 1 20 bit timer/counter

Analog I/O

  • Integrated 12 channel 10 bit A/D converter

Digital I/O

  • Up to 108 digital I/O individual configurable

Power Requirement

  • 3.3V DC

Mechanical

  • SODIMM form factor (66.60mm x 40mm)
  • Operating temperature: Fanless 0°C to 70° C (extended temperature range available)

Software support

  • U-boot
  • Linux
  • Debian ARM Linux based distribution with GCC, Perl, MySQL, and many other utilities for rapid native application development
  • Linux cross development tool chain
