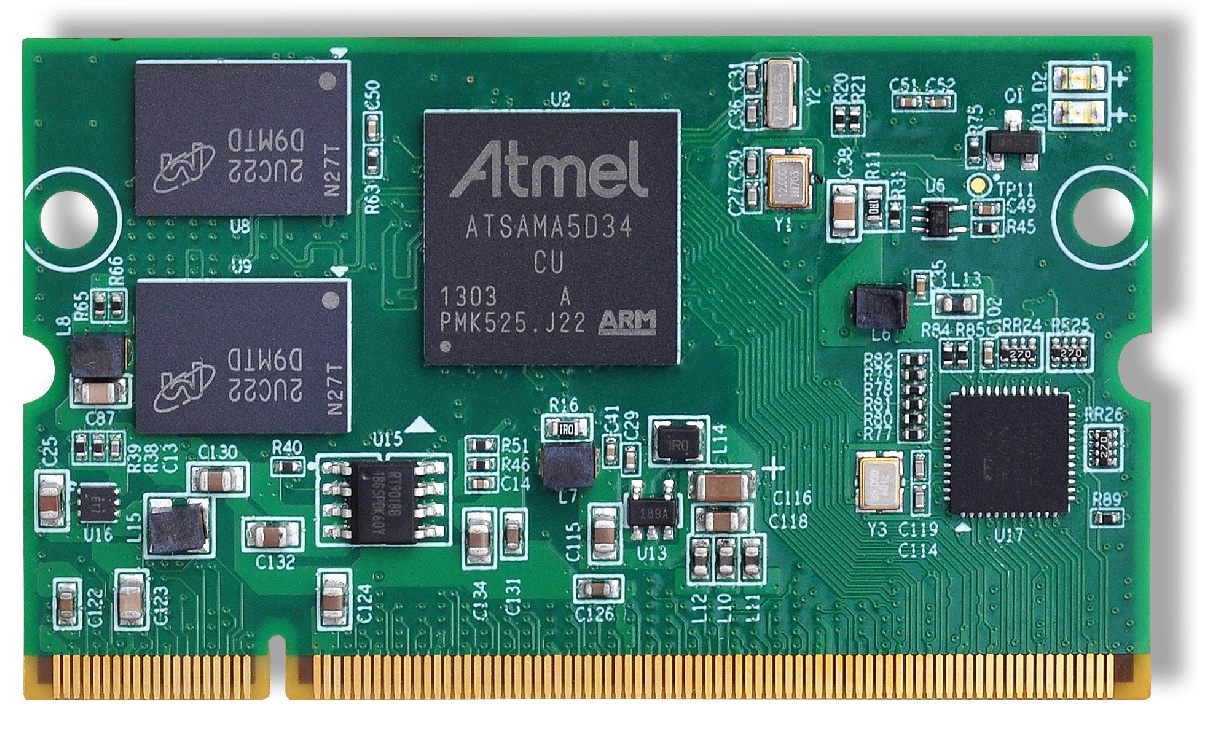

High performance, low cost embedded CPU module with GigaBit LAN, USB, LCD controller, A/D

• 536MHz Atmel SAMA5D3 ARM Cortex A5 processor
• Integrated Floating Point Unit (VFPv4)
• 256 MByte high speed DDR2RAM, optional 512MB RAM
• 256MB ~ 1GB NAND FLASH
• 10/100/1000 Gigabit Ethernet with IEEE1588 support
• LCD TFT Controller with Overlay, Alpha-blending, Rotation, Scaling and Color Space Conversion
• SD/MMC with SDHC support
• 2 USB High Speed Host port
• 1 USB device port
• 3 UART
• Two CAN Controllers with 8 Mailboxes, fully Compliant with CAN 2.0 Part A and 2.0 Part B
• Real-time clock and watch-dog timer
• A/D
• Digital I/O

System

• 536MHz Atmel SAMA5D3 ARM Cortex A5 processor
• Fully Integrated MMU and Floating Point Unit (VFPv4)
• 256 MB high speed DDR2RAM, optional 512MB DDR2RAM
• 256MB NAND FLASH, optional 512MB, 1GB NAND FLASH
• LCD TFT Controller with Overlay, Alpha-blending, Rotation, Scaling and Color Space Conversion
• Three High Speed Memory Card Hosts (eMMC 4.3 and SD 2.0)

Multi-IO

• 2 USB high speed host ports
• 1 USB device port
• 3 UART
• I2C bus
• SPI bus
• Image sensor interface

Network

• On board 10/100/1000 Gigabit Ethernet with IEEE1588 support

Timer & Clock

• On chip real time clock with battery backup
• On chip watch-dog timer
• On chip 3 16 bit timer with PWM capability, 1 20 bit timer/counter

Analog I/O

• Integrated 12 channel 12 bit A/D converter supports 4/5 wire resistive touch screen

Digital I/O

• Up to 160 digital I/O individual configurable

Power Requirement

• 3.3V DC

Mechanical

• SODIMM form factor (66.60mm x 40mm)
• Operating temperature: Fanless 0°C to 70° C (extended temperature range available)

Software support

• U-boot
• Linux
• Debian ARM Linux based distribution with GCC, Perl, MySQL, and many other utilities for rapid native application development
• Linux cross development tool chain
